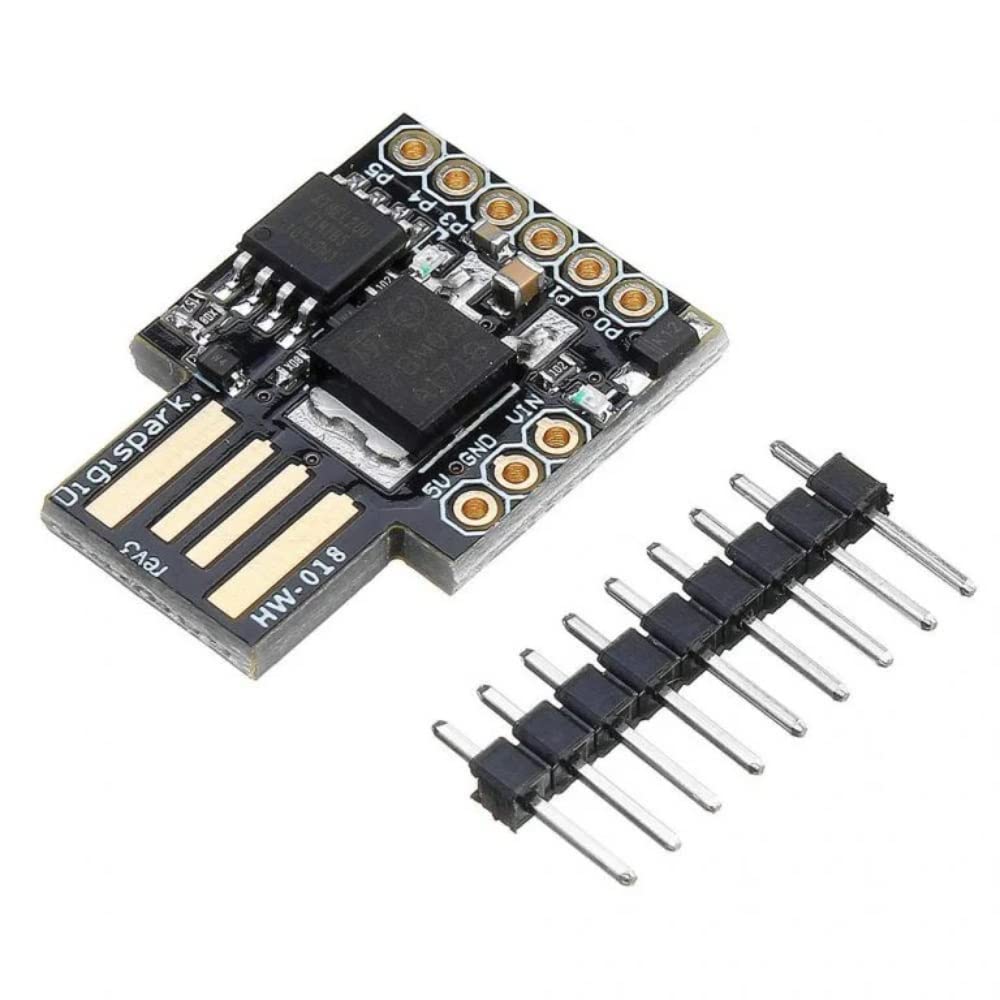

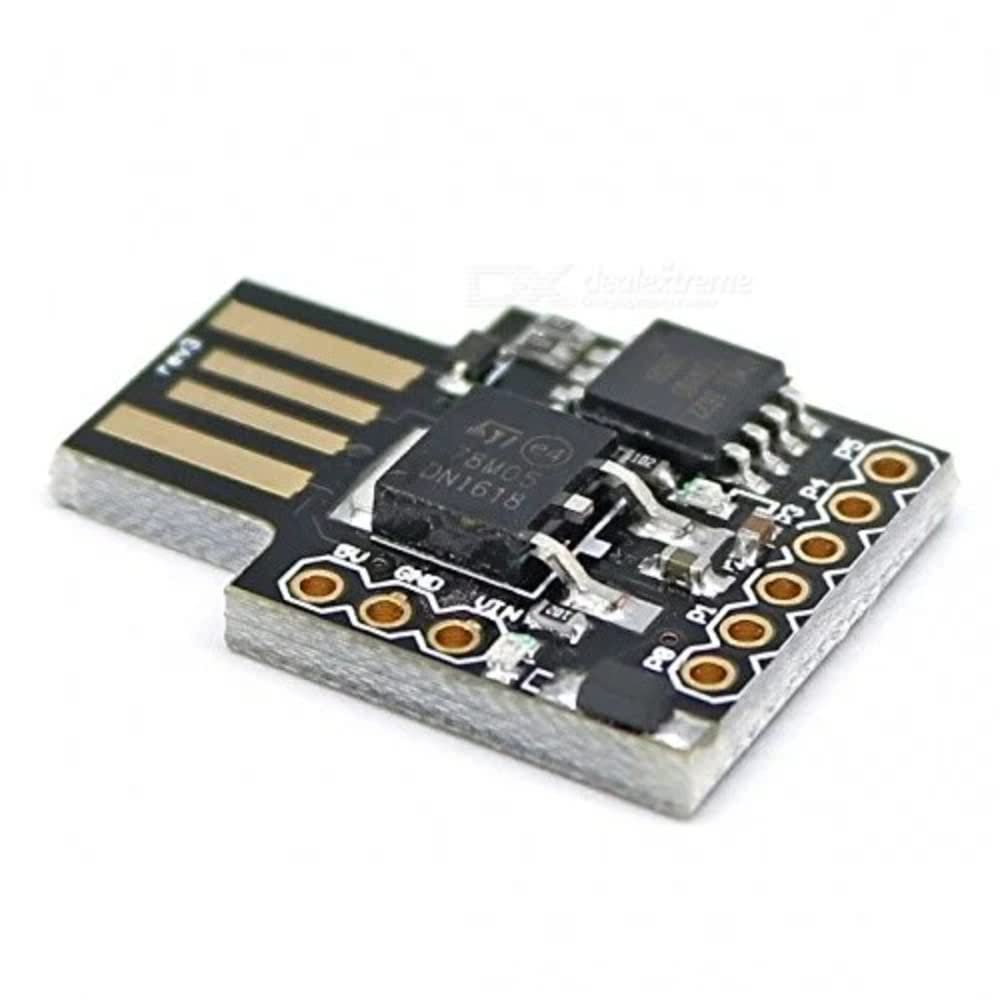

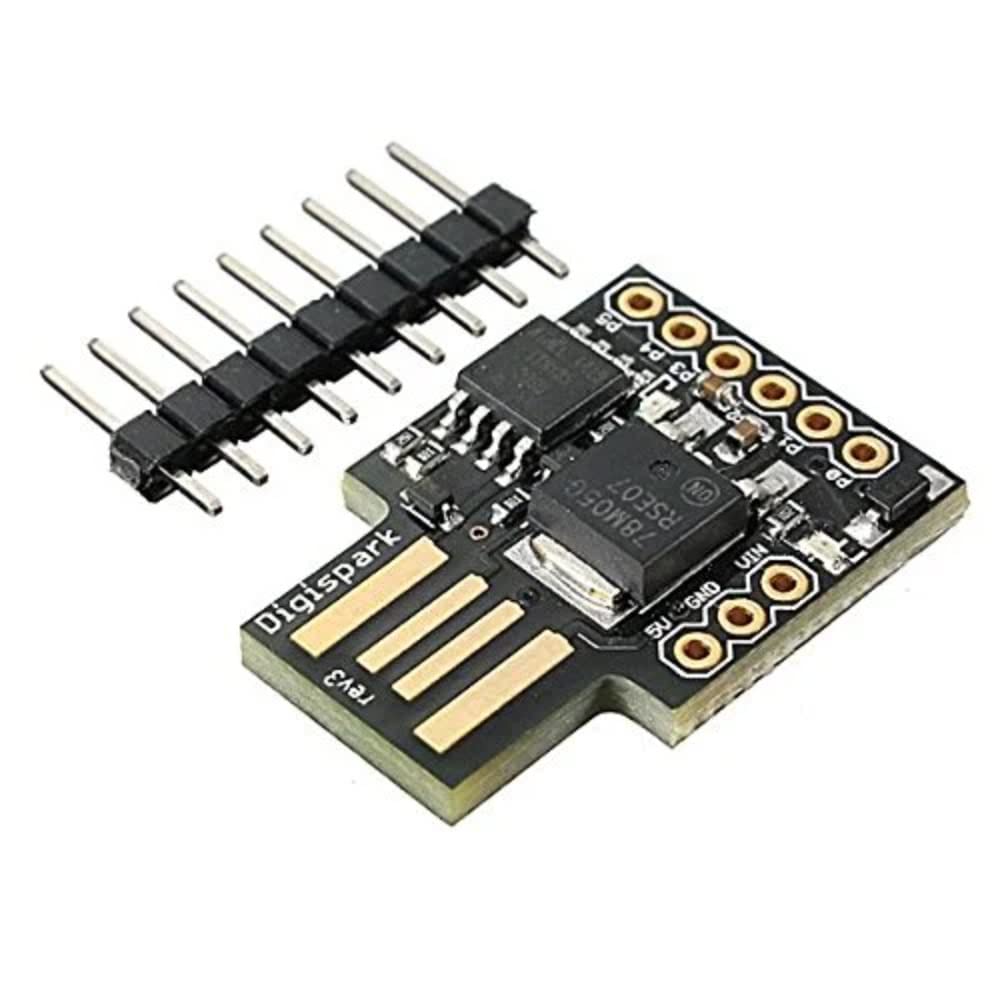

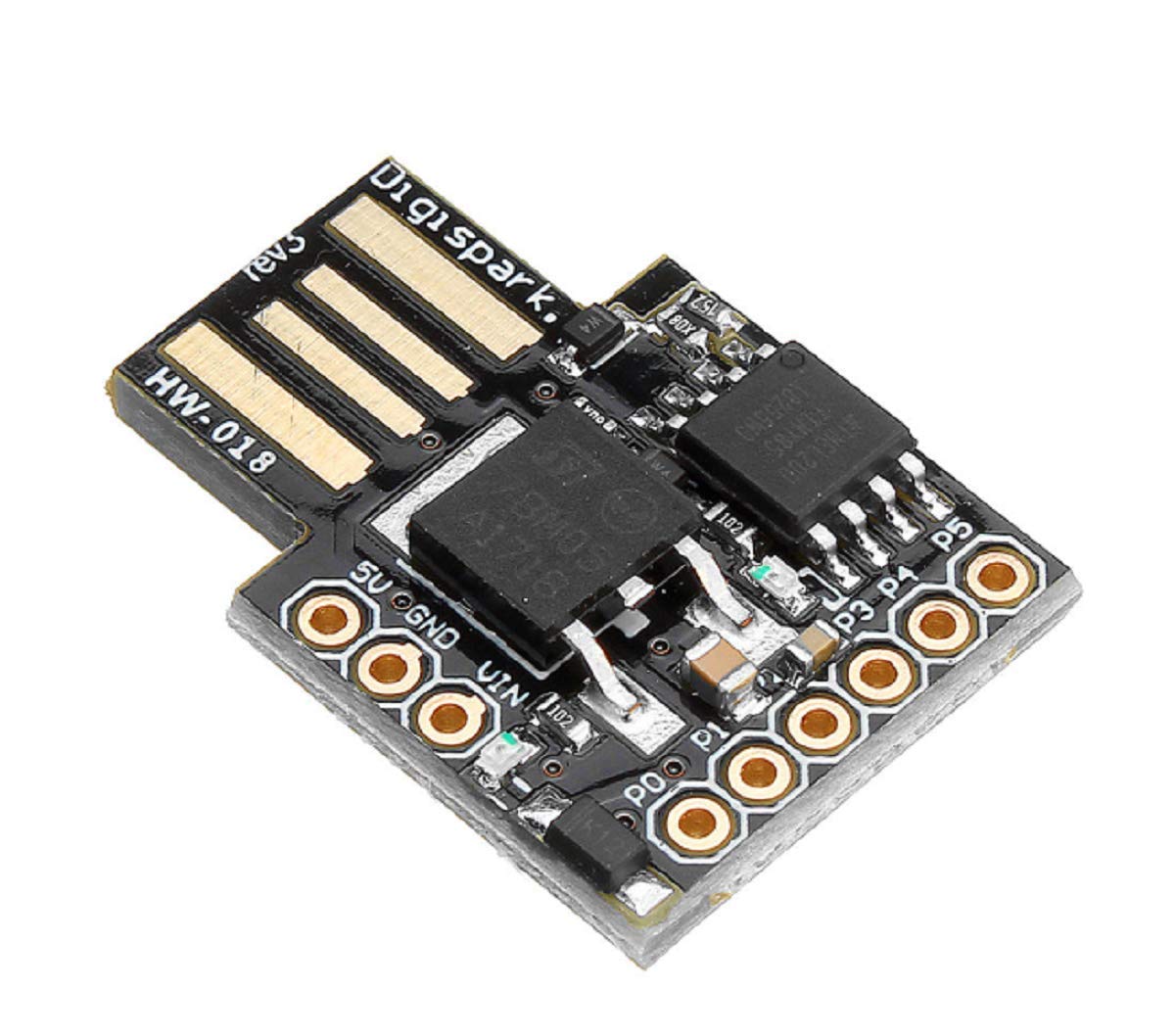

Digispark ATTINY85 USB Development Board

Digispark ATTINY85 USB Development Board

The ATtiny85-based mini development board provides a cost-effective and compact alternative to Arduino, offering slightly less processing power. It is compatible with various shields for enhanced functionality and integrates seamlessly with the familiar Arduino IDE, making it an excellent entry point into microcontroller electronics.

Featuring a built-in USB interface, programming this microcontroller is straightforward and similar to using Arduino, leveraging the well-known Arduino IDE for development. Essentially a Digispark clone, it comes with 6 versatile ports that can be configured through the Arduino IDE. These ports can function as 6 digital I/O pins, 4 analog inputs, or 3 PWM outputs. The board offers flexible power options, operating smoothly with either a USB connection or an external power supply ranging from 6 to 35 volts DC.

Features

• Power via USB or External Source – 5v or 7-35v (automatic selection)
• 6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
• 8 k Flash Memory (about 6 k after bootloader)
• PWM on 3 pins (more possible with Software PWM)
• The ADC on 4 pins
• Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).
• Power via USB or External Source or 7-16 v to 5 v (automatic selection).
• The On – board, 150 ma 5 v Regulator.
• Built – in USB and serial was debugging).
• 6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
• 8 k Flash Memory (about 6 k after bootloader).
• The I2C and SPI (vis USI).
• PWM on 3 pins (more possible with Software PWM).
• The ADC on 4 pins.
• The Power LED and the Test/Status leds.

Specification:

Package Includes:

1 x Digi spark ATTINY85 USB Development Board

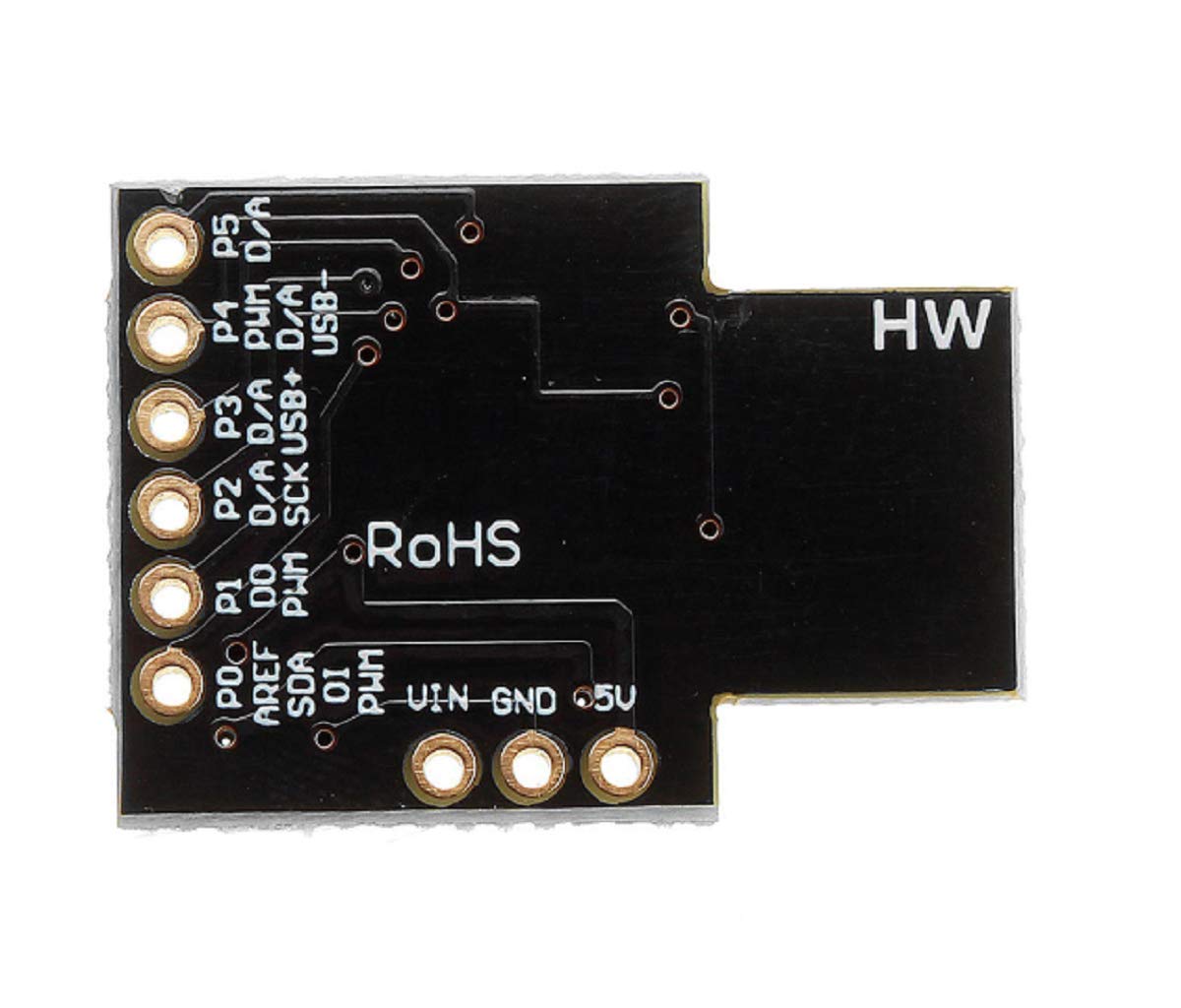

DOWNLOAD PIN DIAGRAM

ATTINY85-USB-Development-Board-Pinout-Diagram
