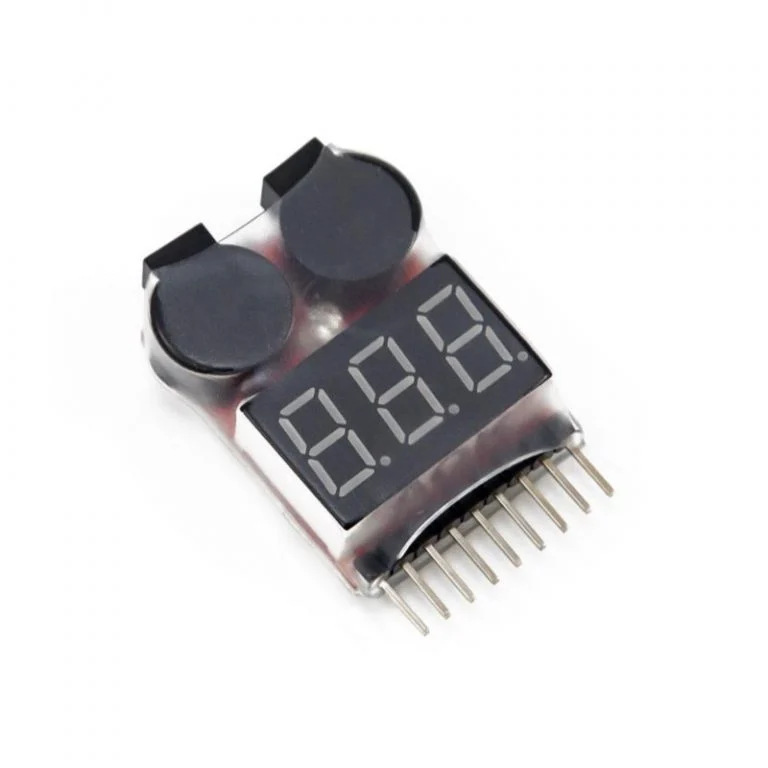

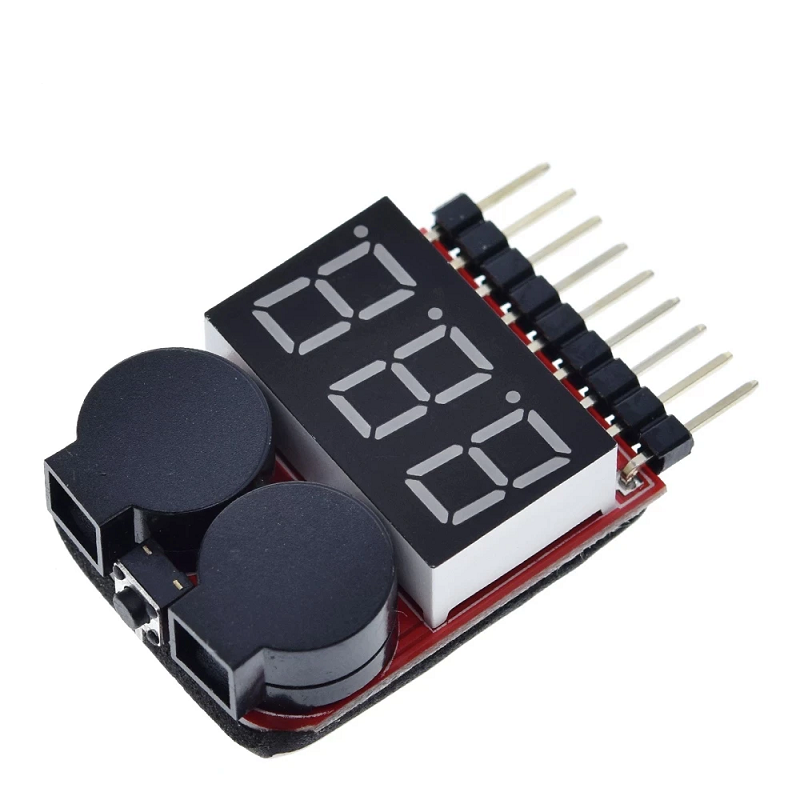

Lipo Voltage Checker 1S-8S with Buzzer Alarm
The LiPo Battery Voltage Checker 1S-8S with Buzzer is a quality product available and a special design to measure and display the voltage of LiPo battery packs. This voltage checker can measure the voltage of the battery pack as well as the voltage of every single cell of the battery pack.
This unit also features a handy built-in Led display that will show the voltage of each cell followed by the overall voltage of the pack. Don’t risk your model by flying on depleted batteries, at this price piece of mind flying can’t be any cheaper!

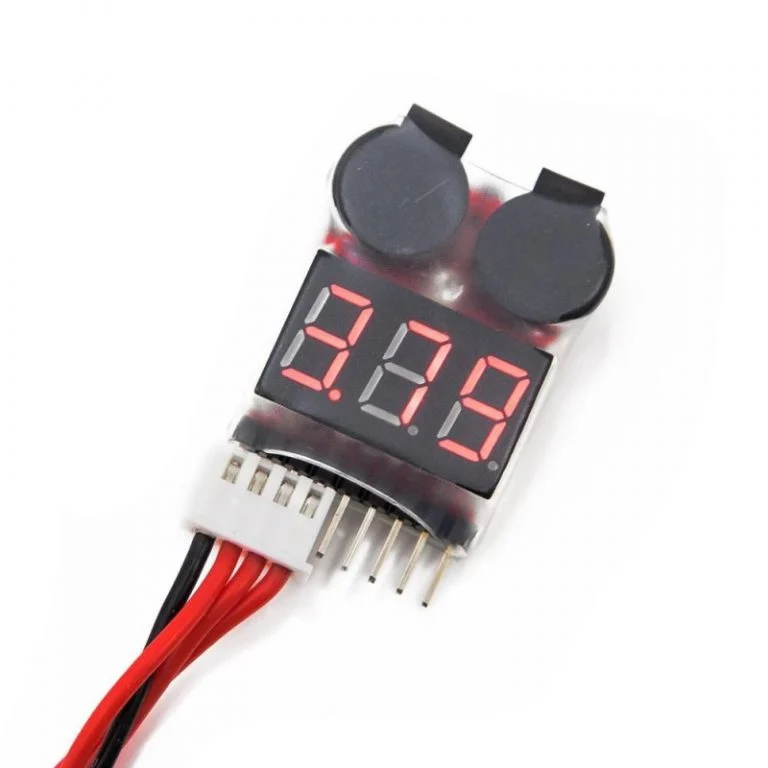

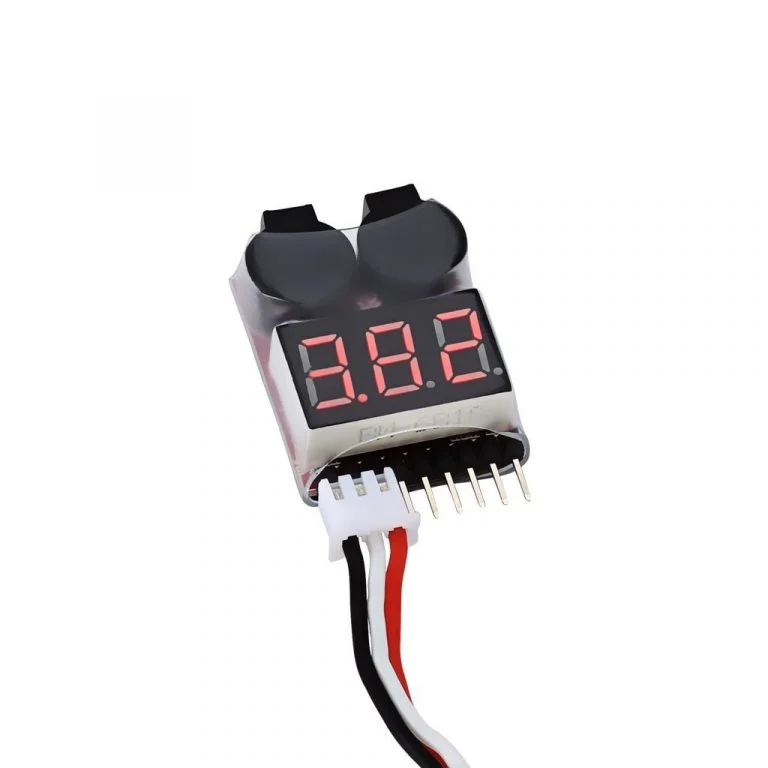

Simply connect the battery balance plug to the leads of this voltage checker, it will show the instant voltage of each cell one by one ending with displaying the voltage of the total pack. The Li-Po Voltage Checker 1S-8S with buzzer alarm is equipped with loud twin piezo alarms which will notify you once your cells reach a low voltage or user defined voltage.
You can customize the alarm to sound at a voltage between 2.7v-3.8v per cell in 0.10v increments. It has a mode button at the top for setting the desired voltage value.
specification-
| Alarm set range (V) | 2.7-3.8 |
|---|---|
| Battery Input | 1S-8S Battery |
| Battery Type | LiPO/LiFe/Li-Ion/LiMn |
| Cell Voltage Display Range (V) | 0.5-4.5 |
| Height (mm) | 12 |
| Length (mm): | 40 |
| Pack voltage display range(V) | 3.7-36 |
| Weight (gm) | 10 |
| Width (mm) | 25 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
Features :
- Input: 1S-8S Battery
- Battery type: Lipo/LiFe/Li-ion/LiMn
- It has a Buzzer Alarm for low voltage indication.
- Useful for measuring each cell voltage.
- It has a mode button at the top for setting the desired voltage value.
Package Includes :
1 x LiPo Battery Voltage Checker 1S-8S with Buzzer
