Operating a drone may seem straightforward, but it requires a transmitter for precise control. A multirotor cannot function without one, as it relies on radio signals to wirelessly send commands to a receiver on the aircraft. Flysky is a well-known brand offering a variety of affordable transmitters and receivers.
Flysky’s AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology is designed for all radio control models, providing excellent interference protection, lower power consumption, and reliable receiver sensitivity.
FrSky transmitters and receivers are gaining popularity for their innovative design and compatibility with high-end drone projects.
Zbotic is the official distributor of Flysky products in India.
Features:
- 10 channel 2.4GHz radio with telemetry capability
- Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology
- Transmitters come pre-bound to the receiver
- Multiple control switches including a 3-pos switch and two potentiometers
- Easy to use and program
- 20 model memory
- Trainer port
- Backlit LCD screen displays real-time transmitter and receiver voltage

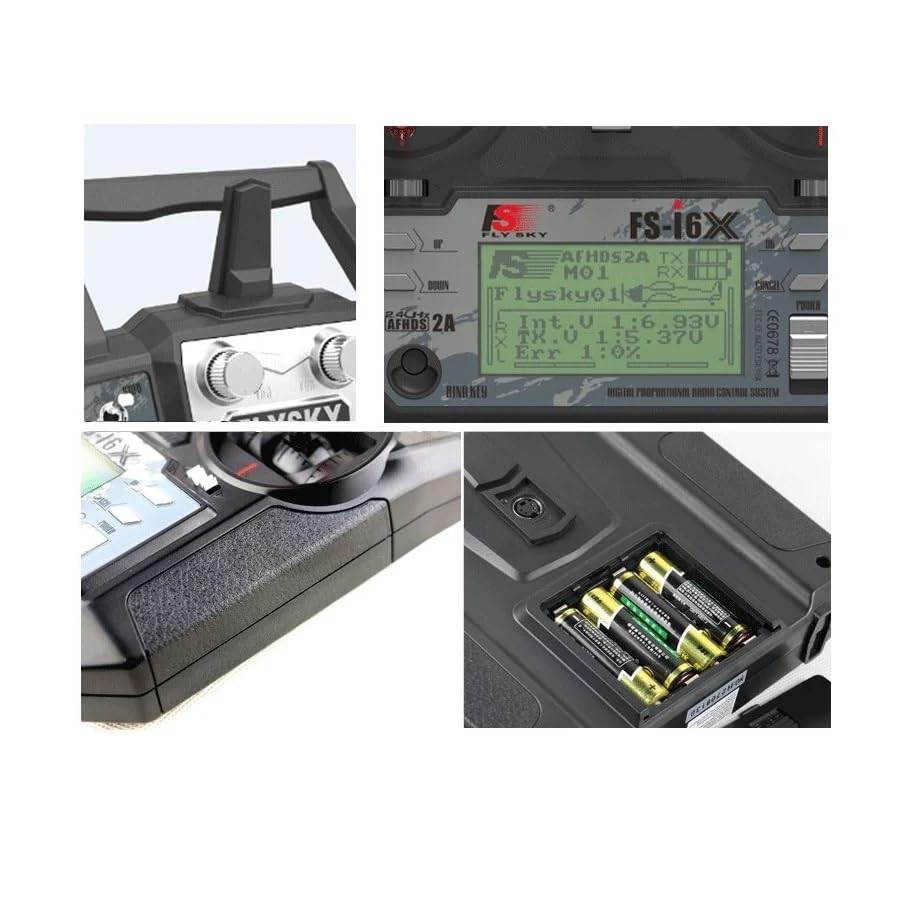

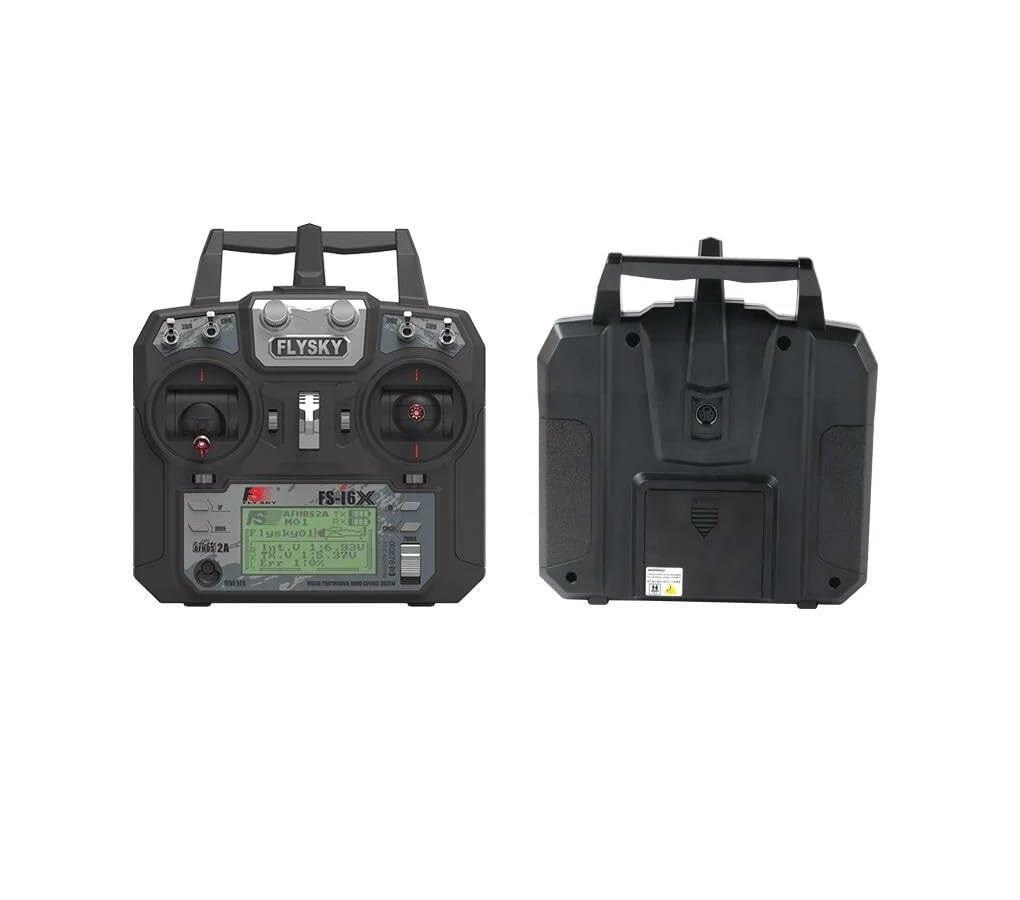

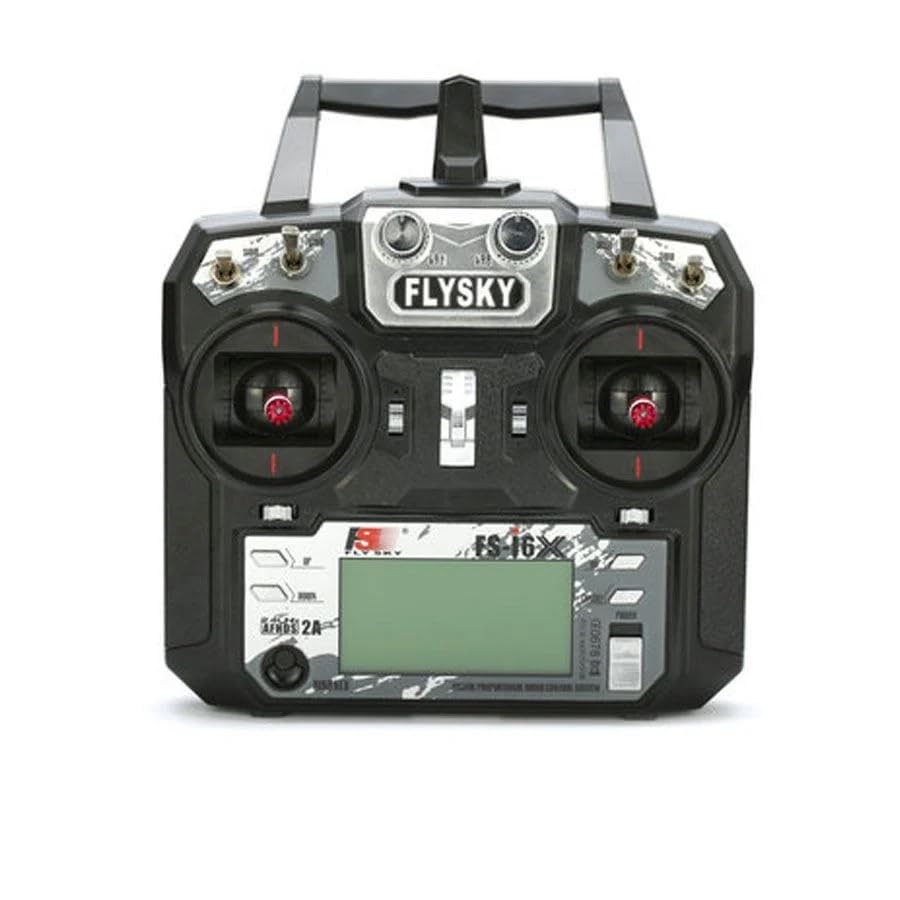

Specification for FS-i6X RC Transmitter :
- Item: FS-i6X RC Transmitter
- Tx Channel: 6
- Model Type: Fixed-Wing/Glider/Helicopter
- RF Range: 2.408-2.475GHz
- RF Power : < 20dBm
- RF Channel: 135
- Bandwidth : 500KHz
- 2.4GHz System : AFHDS 2A / AFDHS
- Modulation Type: GFSK
- Stick Resolution: 4096
- Low Voltage Warning: < 4.2V
- DSC port: PS/2 Port PPM
- Chargeable: No
- Antenna Length: 26mm (Dual Antenna)
- Weight: 392g
- Power : 6V DC 1.5A
- Display: STN Transflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
- Size : 174 x 89 x 190 mm
- Online Update: Yes
- Color: Black
- Certificate: CE0678, FCC

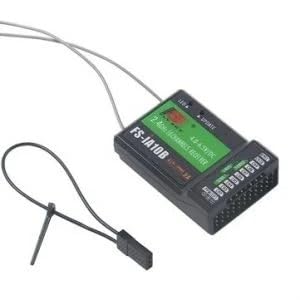

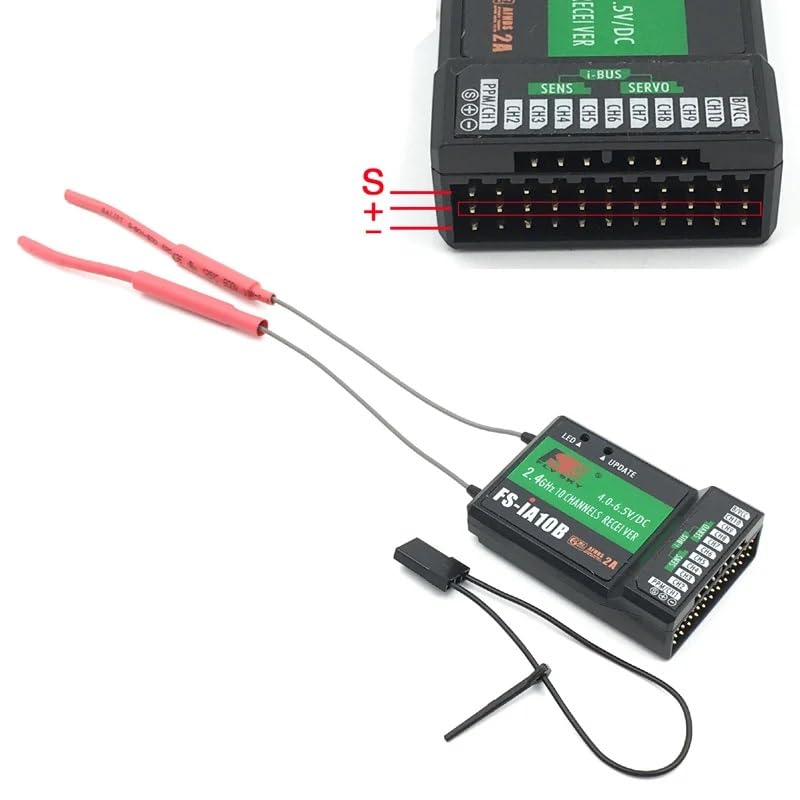

Specifications for FS-iA10B RC Receiver:
- Rx Channels: 10
- Suitable models: Airplane / glider / helicopter Health
- Frequency range :2.4-2 .48 GHz
- Transmitting power: not more than 20dBm
- Receiver sensitivity:-105dBm
- 2.4G modes: automatic frequency second generation digital system
- Encoding: GFSK
- Antenna length: 26 mm * 2 (dual antenna)
- Weight: 19.3 g
- Input power :4.0-6 .5 V DC
- Dimensions: 47 x 33.1 x 14.7 mm
- Color: Black
- Certification: CE0678, FCC
- i-BUS Interface: Yes
- Data acquisition interface: Yes
- Color: Black.
- Model Type : Airplane / Glider / Helicopter
- Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

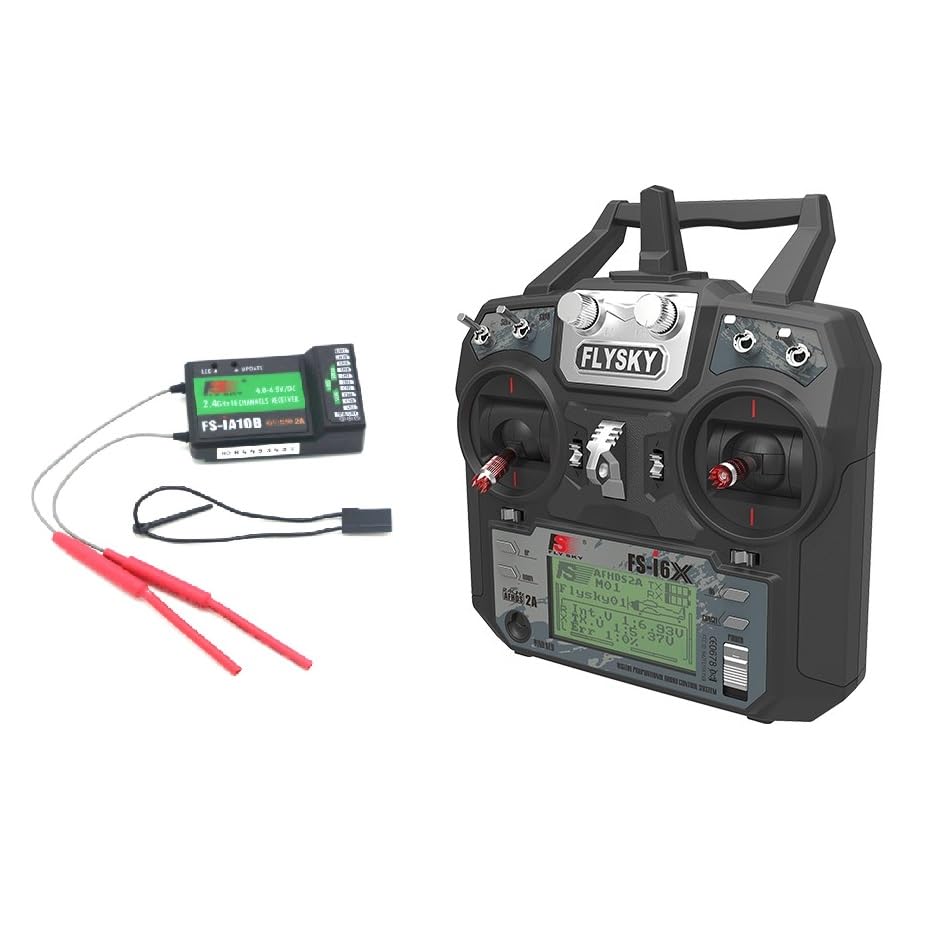

Package Includes :
1 x Fly sky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter.
1 x FS-iA10B 2.4GHz 10CH Receiver with Binding cable.
1 x PS2 to USB Update Cable.
1 x User Manual.
