In drone operation, the transmitter is a crucial component. Without it, you cannot pilot a multirotor as it transmits commands wirelessly to a Radio Receiver attached to the remotely controlled aircraft or multirotor.

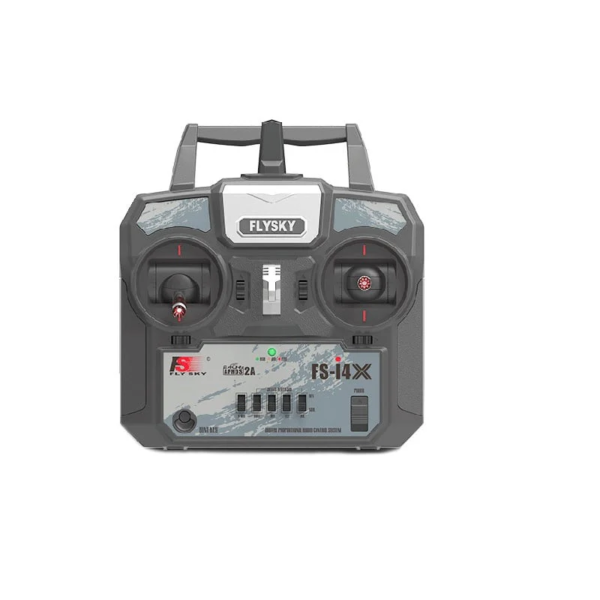

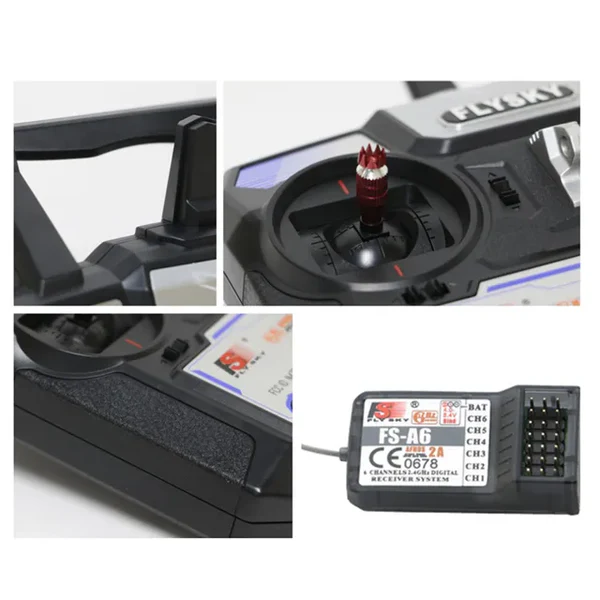

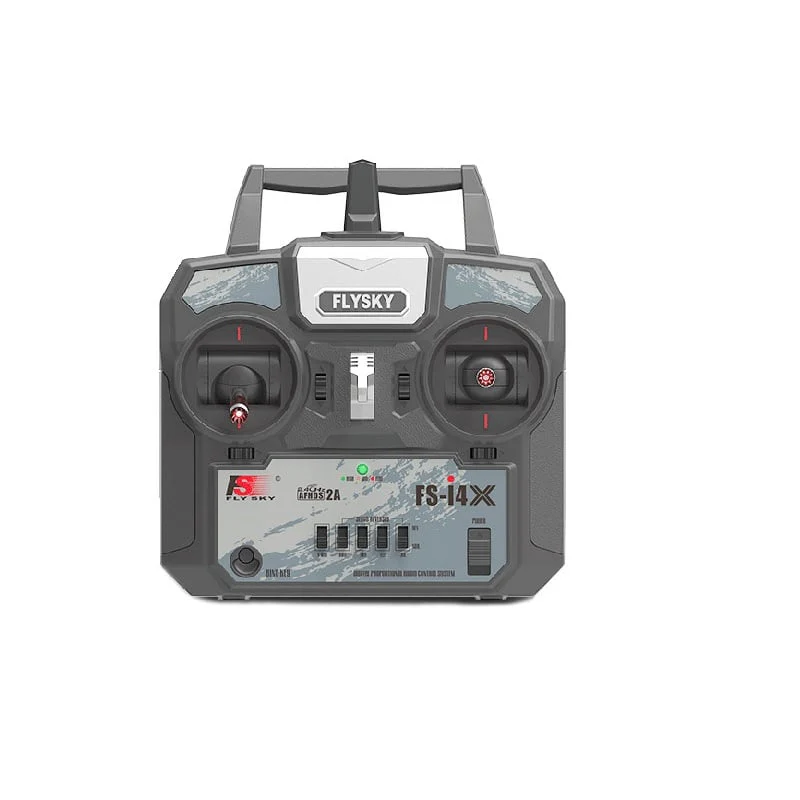

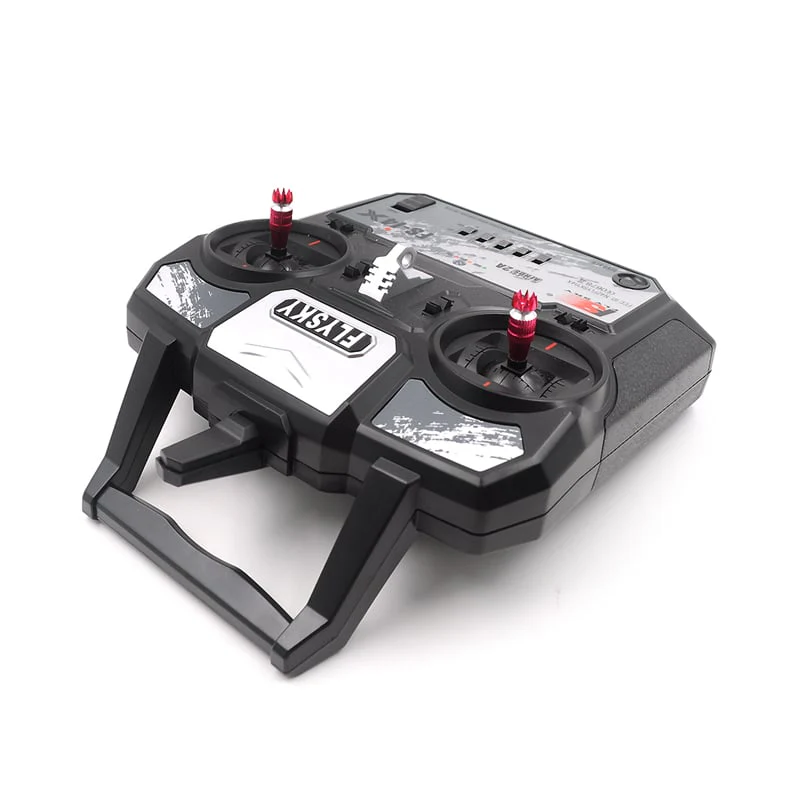

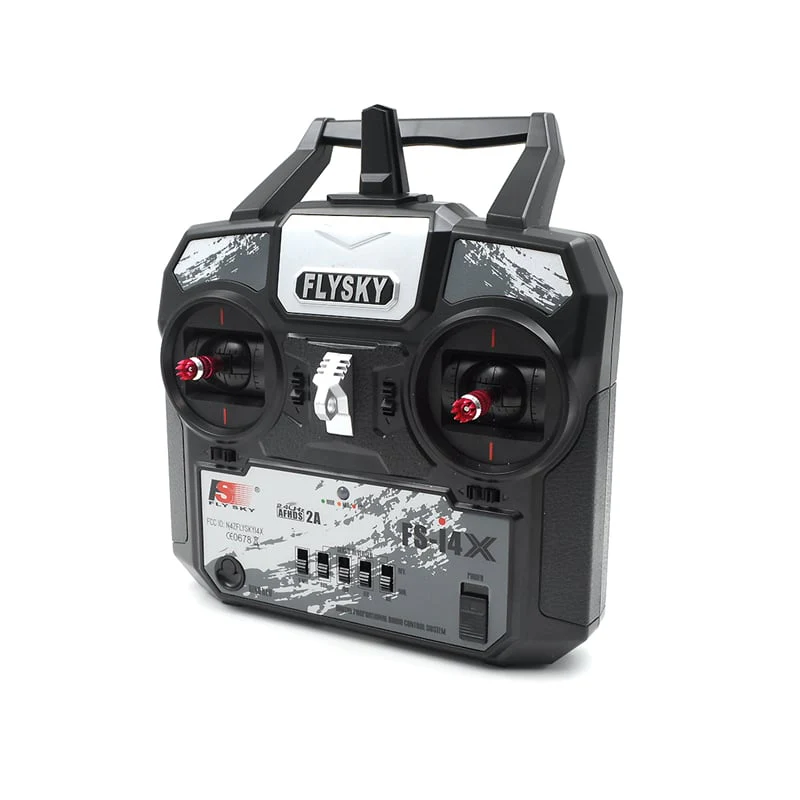

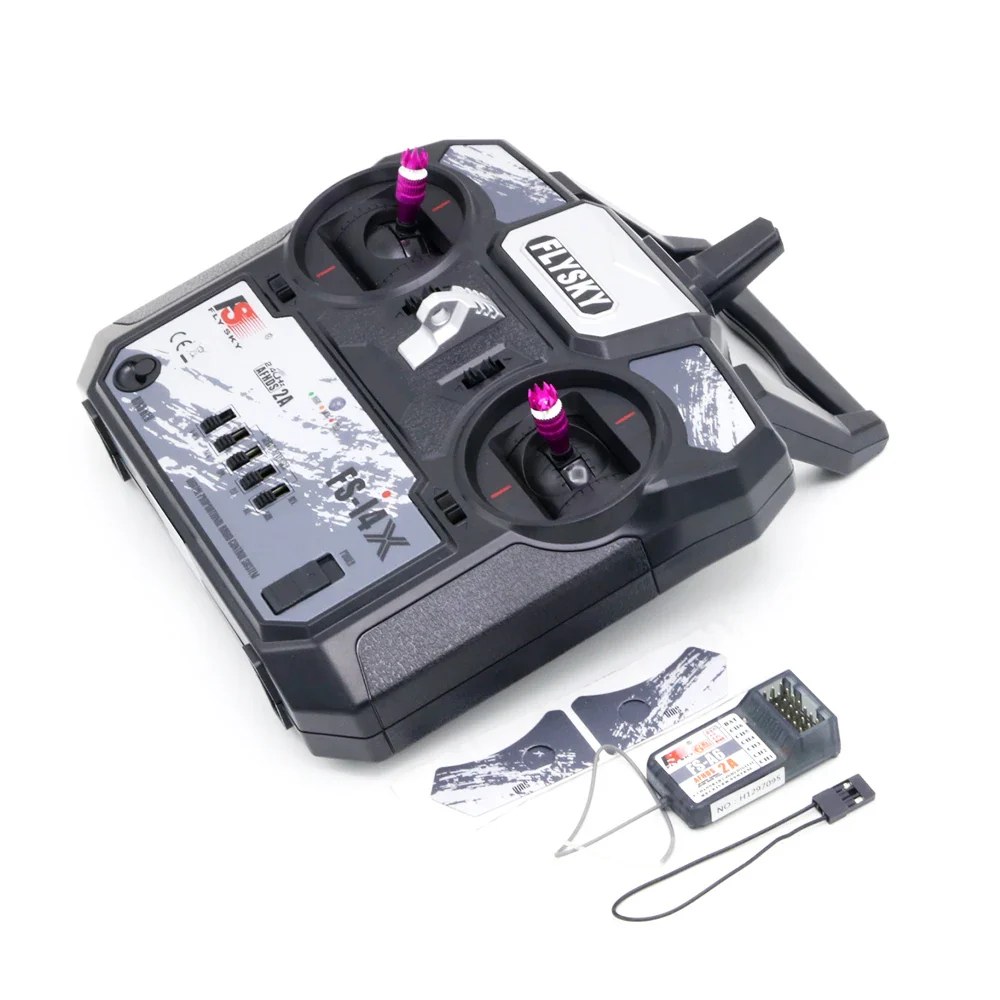

The FlySky FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter + FS-A6 Receiver employs a high-gain, quality multi-directional antenna, encompassing the entire frequency band. Paired with a highly sensitive receiver, it ensures jamming-free, long-range radio transmission. The transmitter supports AFHDS 2A, allowing multiple radios to function simultaneously without mutual interference. Each transmitter binds with a unique ID to a receiver, which only accepts data from that specific transmitter, enhancing interference immunity and safety.
This system boasts robust active and passive anti-interference capabilities and a V-MIX mix control system, making it compatible with various models. You can customize the expansion channel according to your needs, up to 10CH. Operating within a frequency range of 2.405 to 2.475GHz, the brand allocates 140 independent channels. It features low-power electronic components and a sensitive receiver chip, with RF modulation using intermittent signals to further reduce power consumption.
AFHDS2A’s integrated multiple channel coding and error-correction enhance communication stability, minimize error rates, and increase the transmission distance reliably.
Item specifics
- Use: Vehicles & Remote Control
- Remote Control Peripherals/Devices: Remote Controller
- RC Parts & Accs: Transmitters
- Model Number: FS-I4X
- Material: Plastic
Specifications
Transmitter:
- Item Name: FS-i4X(Latest Released Model)
- Mode(optional): Mode 1 (Right Hand Throttle), Mode 2 (Left-Hand Throttle)
- Default Mode: Mode 2
- Band Range: 2.4055-2.475GHz
- Bond Amount: 140
- No. of Channel: 4
- Model Type: RC Airplane/Glider/Helicopter
- RF Power: <20dBm
- Bandwidth: 500KHz
- 2.4GHz System: AFHDS 2A / AFHDS
- Modulation Type: GFSK
- Stick Resolution: 1024
- Low Voltage Warning: <4.2V
- DSC Port: PS2 PPM
- Antenna Length: 26mm *2
- Weight: 335g
- Power: 6V DC 1.5AA*4(Not included)
- Display: LED Indicators
Receiver:
- Item Name: FS-A6
- No. of Channels: 6
- Model Type: Fixed-Wing/Glider/ Helicopter
- RF Range: 2.4055-2.475GHz
- RF Channel: 140
- RF Receiver Sensitivity: -105dBm
- Bandwidth: 500KHz
- 2.4GHz System: AFHDS 2A
- Modulation Type: GFSK
- Power: 4.0-6.5V DC
- Antenna Length: 26mm

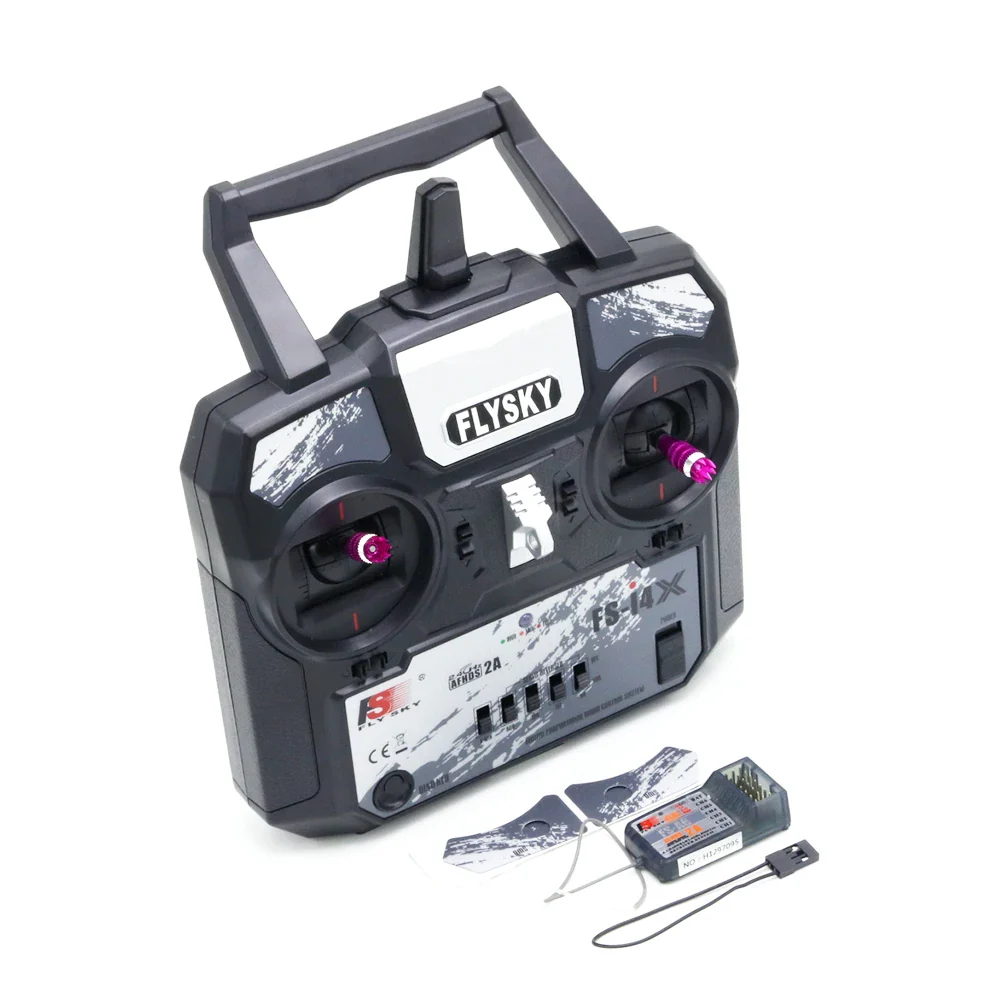

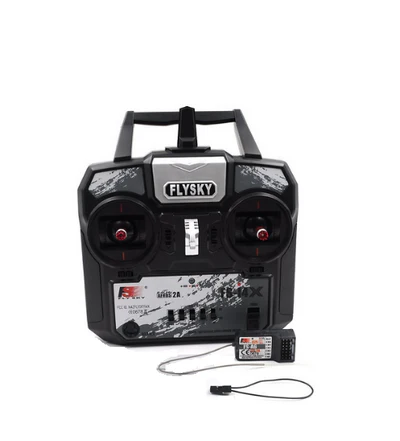

Package Includes:
1 x FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter.
1 x FS-A6 Receiver.
1 x User Manual.
