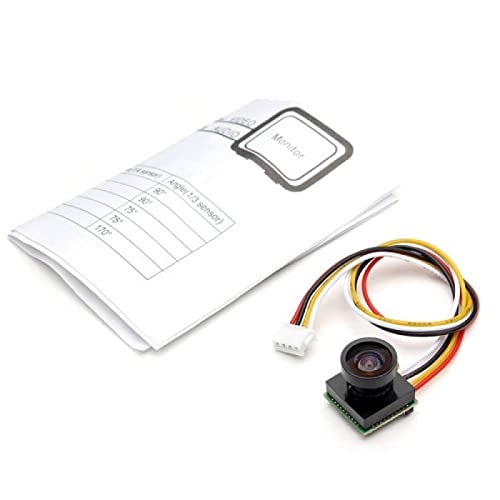

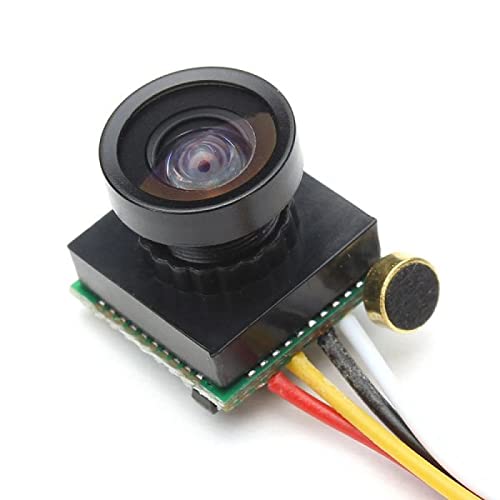

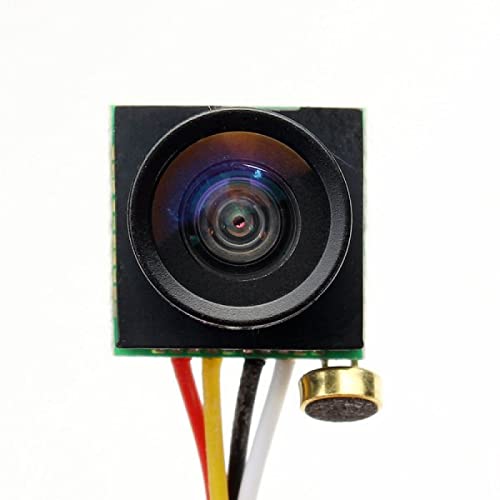

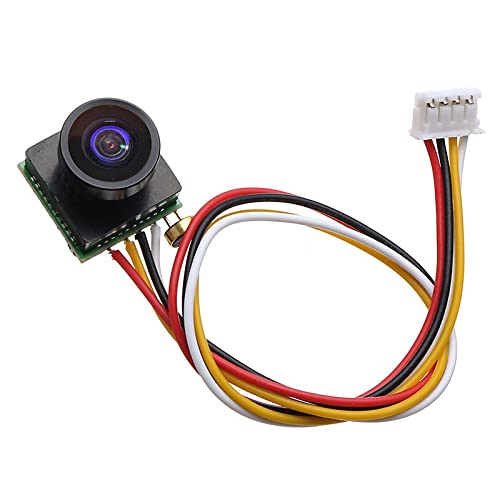

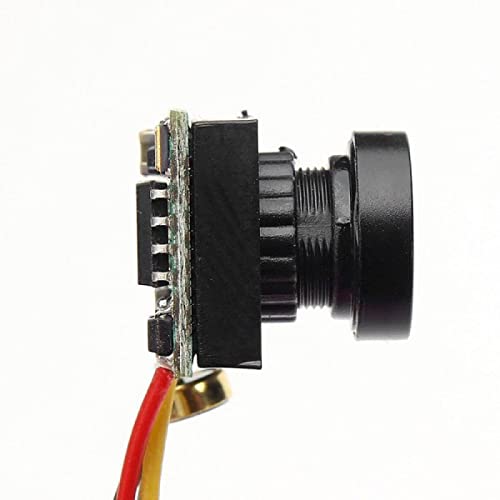

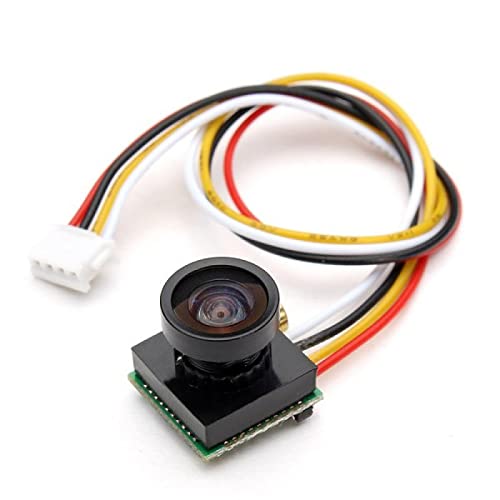

This 600TVL 170-degree Mini FPV AV Camera with Audio is suitable for Mini 200, 250, 300 Drones.
An FPV camera is crucial when building a drone, as it sends video or photos to the receiver. This camera supports both PAL and NTSC formats; PAL provides a sharper and clearer text display, while NTSC offers a slightly higher frame rate for smoother video playback. The lens can tilt up to 170 degrees, making it versatile for various applications such as aerial photography, cinematography, remote inspections, security, military, and entertainment.
The 600TVL 170-degree mini FPV camera is compact, lightweight, and equipped with audio, ideal for Mini 200/250/300 Quadcopters. It boasts a frame rate of approximately 50f/s, perfect for capturing slow-motion footage. With features like a 3.7-5V 100mA power requirement, 1280 x 960 resolution, and excellent low-light performance, it’s an excellent choice for quadcopter applications.
Note:
Image may vary from actual product in terms of IC branding and PCB design.
Features:
- Illumination: 0.5LUX
- Format: PAL / NTSC
- Audio Lens: Wide-angle 1.8mm (170 degrees)
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) × 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- Standard Lens : 1.8 mm
- Size of the lens : M10
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature Range: -10 °C ~ 60 °CRH95% Max
specification
| Item Type: | FPV Camera |
|---|---|
| Resolution (TVL) | 600 |
| Image Sensor | 1/4 CMOS |
| Minimum Illumination | 0.1 Lux / F1.2 |
| Resolution | 1280 x 960 |
| Video Output | 1.0Vp – P75Ω. |
| S/N Ratio (dB) | 48 |
| Operating Temperature (°C) | -10 to 50 |
| Dimensions (L x W x H) mm | 12.5 x 12.5 x 17 |
